    • EdgeBreaker® 3000 FIBER

    Double-sided Deburring and Edge Rounding Power for your Fiber Laser Cut Parts

    The EdgeBreaker® 3000 FIBER was developed specifically for processing the particularly hard and tough burrs that occur on parts during fiber laser cutting. The fiber burrs are reliably removed with powerful abrasive belts.
    All edges are then rounded to improve the adhesion of the coating. This reduces the risk of corrosion damage on exposed edges and ensures lasting resistance to rust.
    Both sides are processed in a single pass - this reduces the processing time by up to 50 %.

    The result: a controlled, stable process, high surface quality and an edge finish that meets your customers' requirements.
    ARKU EdgeBreaker® 3000 FIBER deburring machine for fiber laser cut parts
    ARKU EdgeBreaker® 3000 FIBER close up of edge rounding unit
    ARKU EdgeBreaker® 3000 FIBER close up of processing windows

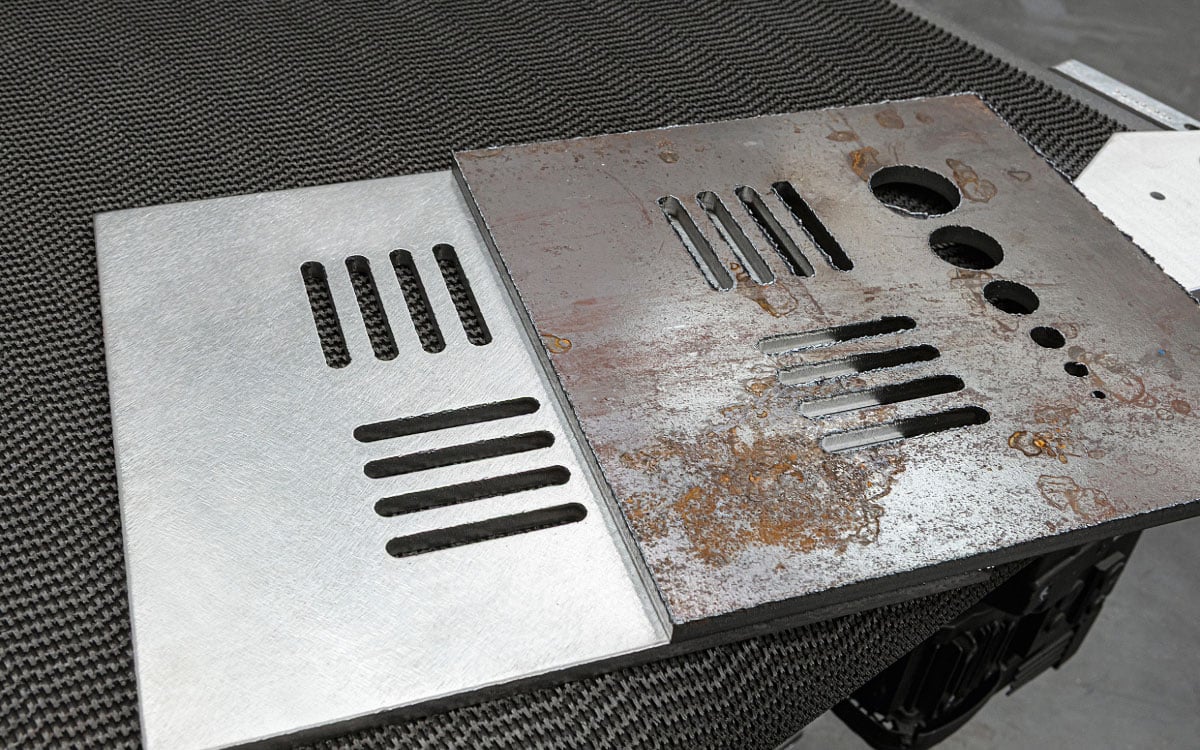

    ARKU EdgeBreaker® 3000 FIBER before and after fiber laser cut parts 1

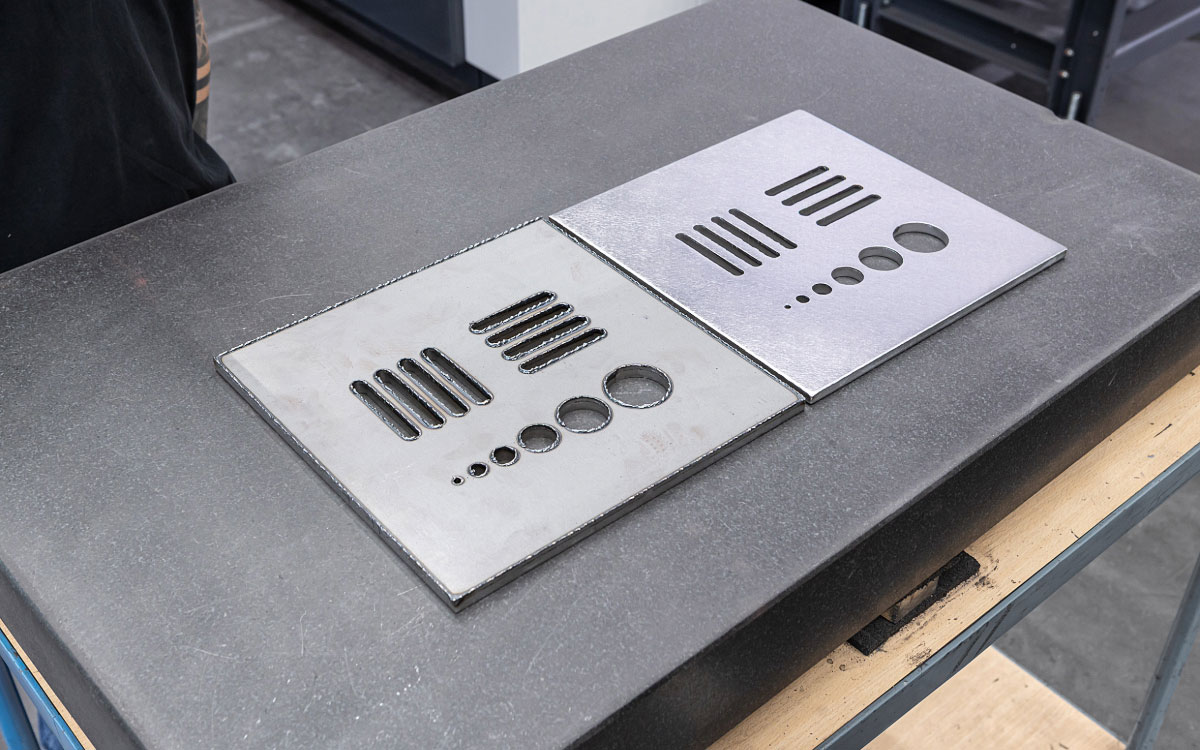

    ARKU EdgeBreaker® 3000 FIBER before and after fiber laser cut parts 2

    Your Advantages as an Overview

    Double-sided deburring belt icon

    Deburring and edge rounding twice as fast

    The EdgeBreaker® 3000 FIBER processes fiber laser cut parts efficiently from both sides at the same time. Powerful abrasive belts remove the burrs and rounding blocks ensure clean and rounded edges. Compared to machines working only single-sided, this machine saves more than 50% production time. Mainly because, this deburring machine not only eliminates the need for a second pass, but also the need to remove, flip and re-insert the parts.

    Tool storage for saving processing parameters

    If you produce the same metal plate or part from time to time, you can save the processing settings directly in the machine and call upon the values when required. This allows you to quickly setup the deburring machine for repeat production runs. Thus, avoiding errors during setup.

    Automatic wear compensation icon

    Automatic wear compensation for abrasives

    For consistent results, it is essential to always know where you stand. The EdgeBreaker® 3000 FIBER measures the remaining length of your edge rounding tools (abrasives) within the machine and automatically compensates for the wear off. Leaving you with consistent results from beginning till end of the tools life.

    Time savings icon

    Quick-change for abrasives offers more flexibility for the range of parts

    All processing units are equipped with a quick-change system, which reduces your set-up times to a minimum. The grinding belts and brushes can be removed and replaced quickly and easily. The brushes are simply clicked into place - without any tools. This allows you to change or combine the various abrasives as required. For optimal edge processing that suits your changing processing requirements.

    Tool storage icon

    Simple operation and maintenance for the deburring machine

    The graphical touchscreen HMI is very intuitive and easy to operate. It supports you in setting up the machine and provides tips on operation and maintenance. It can even be used while wearing gloves. For efficient processing without errors.

    See for yourself: How the EdgeBreaker® 3000 FIBER works!

    The EdgeBreaker® 3000 FIBER puts an end to burrs on fiber laser cut parts once and for all. The powerful grinding belts deburr the sheet metal parts from top and bottom in the first unit. In the second unit, brushes ensure even edge rounding. See for yourself how you can achieve perfect parts in the shortest possible time.

    ARKU EdgeBreaker® 3000 FIBER before and after fiber laser cut parts 1

    50% Cost Savings through Double-sided Deburring and Edge Rounding

    Thanks to its grinding belts and brushes, the EdgeBreaker® 3000 FIBER deburrs and edge rounds the parts from top and bottom at the same time, in a single pass. Thanks to its double deburring power, it is also able to process large quantities productively and efficiently. Compared to single-sided machines, you save 50% of your production costs.
    ARKU wizard

    Always the Ideal Processing Settings - with the ARKU Wizard

    The ARKU Wizard is intelligent software that helps operators to automatically adjust the processing settings of the EdgeBreaker® 3000 FIBER deburring machine. The software automatically selects the best deburring tool for the particular processing requirement(s). In doing so, the Wizard always optimally adjusts the deburring machine to achieve maximum productivity and minimal tool wear. In this way, operators can be sure of achieving the desired processing results with minimum effort and no time wasted.

    Processing Features for every Requirement

    ARKU has developed various modules for processing sheet metal parts to ensure the highest quality, reliable processes and individual, tailor-made solutions that meet your requirements.

    Schleifband_PBO2462

    Deburring with wide belts

    With powerful abrasive wide belts, sharp-edged burrs on your fiber laser cut parts are a thing of the past.

    Verrunden mit Verrundungsblöcken

    Edge rounding with rounding blocks

    After deburring, the sheet metal parts are quickly and efficiently edge rounded in ARKU machines to ensure optimal further processing and quality, using various abrasives as required.
    Autokalibrierung

    Automatic calibration

    The ARKU EdgeBreaker®'s auto-calibration feature measures and automatically adjusts abrasive consumption to ensure consistent quality and easy maintenance.
    Thanks to the EdgeBreaker® 3000 FIBER, we are able to take the deburring of fiber laser cut parts to the next level.“

    Andreas Hellriegel, Business Development for ARKU Maschinenbau GmbH

    Technical Data Overview



    Processing type

    double-sided, dry
    Material thickness 0.8 - 100 mm
    Max. working width 1,300 mm
    Weight approx. 4,500 kg
    Dimensions (L x W x H) approx. 3,100 x 1,900 x 2,200 mm



    Do you have different requirements? We would be happy to support you with a customized solution..
    Please contact us!



    Frequently Asked Questions

    This can be achieved mechanically using various processes. With single-sided machines, a part must be turned after the first pass and processed again by the machine. With machines that process double-sided, such as the EdgeBreaker® 3000 FIBER, parts can be deburred and edge rounded from both sides in just a single pass. Powerful abrasive belts are used for deburring (grinding), while special block brushes are used for edge rounding.

    Suitable Tools

    abrasive belts for deburring

    Abrasive belts for deburring

    Abrasive belts to deburr metal parts and plates.
    Learn more
    Blöcke zum Verrunden

    Blocks for edge rounding

    To round the edges including the inner and outer contours.
    Learn more
